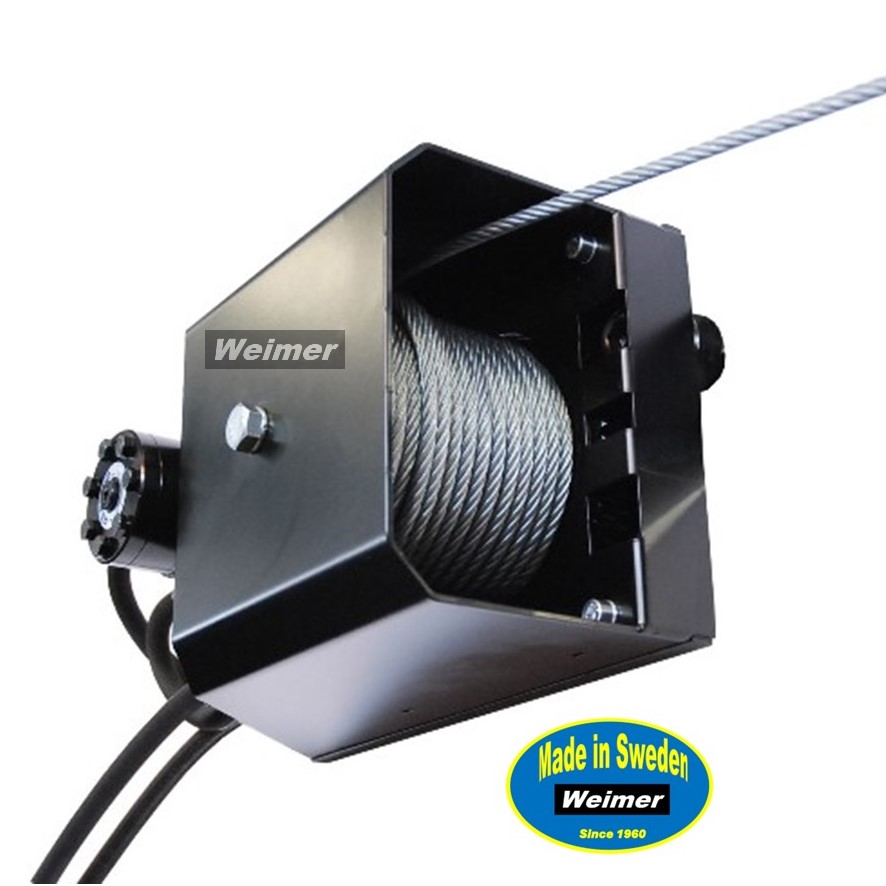

Hydraulic winch We-1400/1700/2200

We-1400/1700/2200 hydraulic winch is a gear-driven winch for optimal performance. Depending on engine size, the pulling force is 1400, 1700 or 2200 kp. The drum is large and contains 40m/6mm or 35m/8mm wire. The winch is built on a plate with mounting brackets that can be easily attached to all cranes. The winch is strong and can handle a demanding environment.

The winch is controlled with a 2-channel radio and a double-acting valve. Press the button and it winches in, if you release the button you get an engine braked position, a press of the OUT button exposes the drum and the cable can be pulled out. The valve has both manual and electric control.

The winch below is delivered complete with hoses, adapters and valves that are connected in series with the crane’s hydraulic circuit.

You can also purchase the winch without hoses and valves if the winch will be installed at another location. You can then control it from a double-acting outlet. Mount it on a forwarder and control it from the existing system.

• Can be mounted on all cranes• Compakt and protected design
• Delivered complete with all hoses• Can be oprated manually or by radio
• Quick and easy assembly• Safe and easy opration by radio

Technical specificationsWe-1400We-1700We-2200
Pulling force at 175 bar1400 kp1700 kp2200 kp
Wire speed at 40 L / min0,45 m / sek0,36 m / sek0,29 m / sek
Wire with hook / längd6 mm/ 40 m8 mm / 35 m8 mm / 35 m
Winch weight part / excl. / complete45 kg / 55 kg / 70 kg48 kg / 58 kg / 73 kg50 kg / 60 kg / 75 kg
Winch We-1400 M3 excl hoses, valve and radio
130211

Included in this article:
Winch We-1400 with attachments
Wire 6 mm 40 m with hook
Pulley with bracket



We-1400 hydraulic winch is a gear-driven winch for optimal performance. Depending on engine size, the pulling force is 1400 kp. The drum is large and contains 40m/6mm wire. The winch is built on a plate with mounting brackets that can be easily attached to all cranes. The winch is strong and can handle a demanding environment.

The winch is controlled with a 2-channel radio and a double-acting valve. Press the button and it winches in, if you release the button you get an engine braked position, a press of the OUT button exposes the drum and the cable can be pulled out. The valve has both manual and electric control.



Technical specificationsWe-1400
Pulling force at 175 bar1400 kp
Wire speed at 40 L / min0,45 m / sek
Wire with hook / längd6 mm/ 40 m
Winch weight part / excl. / complete45 kg / 55 kg / 70 kg
Price, VAT excl.10 800
Buy
Winch We-1700 M3 excl hoses, valve and radio
130212

Included in this article:
Winch We-1700 with attachments
Wire 8 mm 35 m with hook
Pulley with bracket



We-1700 hydraulic winch is a gear-driven winch for optimal performance. Depending on engine size, the pulling force is 1700 kp. The drum is large and contains 35m/8mm wire. The winch is built on a plate with mounting brackets that can be easily attached to all cranes. The winch is strong and can handle a demanding environment.

The winch is controlled with a 2-channel radio and a double-acting valve. Press the button and it winches in, if you release the button you get an engine braked position, a press of the OUT button exposes the drum and the cable can be pulled out. The valve has both manual and electric control.



Technical specificationsWe-1700
Pulling force at 175 bar1700 kp
Wire speed at 40 L / min0,36 m / sek
Wire with hook / längd8 mm / 35 m
Winch weight part / excl. / complete48 kg / 58 kg / 73 kg
Price, VAT excl.11 400
Buy
Winch We-2200 M3 excl hoses, valve and radio
130213

Included in this article:
Winch We-2200 with attachments
Wire 8 mm 35 m with hook
Pulley with bracket



We-2200 hydraulic winch is a gear-driven winch for optimal performance. Depending on engine size, the pulling force is 2200 kp. The drum is large and contains 35m/8mm wire. The winch is built on a plate with mounting brackets that can be easily attached to all cranes. The winch is strong and can handle a demanding environment.

The winch is controlled with a 2-channel radio and a double-acting valve. Press the button and it winches in, if you release the button you get an engine braked position, a press of the OUT button exposes the drum and the cable can be pulled out. The valve has both manual and electric control.



Technical specificationsWe-2200
Pulling force at 175 bar2200 kp
Wire speed at 40 L / min0,29 m / sek
Wire with hook / längd8 mm / 35 m
Winch weight part / excl. / complete50 kg / 60 kg / 75 kg
Price, VAT excl.11 800
Buy
Winch We-1400 M3 with radio control
130217

Included in this article:
Winch We-1400 with attachments
Wire 6 mm 40 m with hook
Pulley with bracket
Pressure and return hose 1/2" 2.5 m
Winch hose 3/8" 2.7 m
Electrical valve with radio unit



We-1400 hydraulic winch is a gear-driven winch for optimal performance. Depending on engine size, the pulling force is 1400 kp. The drum is large and contains 40m/6mm wire. The winch is built on a plate with mounting brackets that can be easily attached to all cranes. The winch is strong and can handle a demanding environment.

The winch is controlled with a 2-channel radio and a double-acting valve. Press the button and it winches in, if you release the button you get an engine braked position, a press of the OUT button exposes the drum and the cable can be pulled out. The valve has both manual and electric control.

The winch below is delivered complete with hoses, adapters and valves that are connected in series with the crane’s hydraulic circuit.



Technical specificationsWe-1400
Pulling force at 175 bar1400 kp
Wire speed at 40 L / min0,45 m / sek
Wire with hook / längd6 mm/ 40 m
Winch weight part / excl. / complete45 kg / 55 kg / 70 kg





Price, VAT excl.16 900
Buy
Winch We-1700 M3 with radio control
130218

Included in this article:
Winch We-1700 with attachments
Wire 8 mm 35 m with hook
Pulley with bracket
Pressure and return hose 1/2" 2.5 m
Winch hose 3/8" 2.7 m
Electrical valve with radio unit



We-1700 hydraulic winch is a gear-driven winch for optimal performance. Depending on engine size, the pulling force is 1700 kp. The drum is large and contains 35m/8mm wire. The winch is built on a plate with mounting brackets that can be easily attached to all cranes. The winch is strong and can handle a demanding environment.

The winch is controlled with a 2-channel radio and a double-acting valve. Press the button and it winches in, if you release the button you get an engine braked position, a press of the OUT button exposes the drum and the cable can be pulled out. The valve has both manual and electric control.

The winch below is delivered complete with hoses, adapters and valves that are connected in series with the crane’s hydraulic circuit.



Technical specificationsWe-1700
Pulling force at 175 bar1700 kp
Wire speed at 40 L / min0,36 m / sek
Wire with hook / längd8 mm / 35 m
Winch weight part / excl. / complete48 kg / 58 kg / 73 kg













Price, VAT excl.17 500
Buy
Winch We-2200 M3 with radio control
130219

Included in this article:
Winch We-2200 with attachments
Wire 8 mm 35 m with hook
Pulley with bracket
Pressure and return hose 1/2" 2.5 m
Winch hose 3/8" 2.7 m
Electrical valve with radio unit



We-2200 hydraulic winch is a gear-driven winch for optimal performance. Depending on engine size, the pulling force is 2200 kp. The drum is large and contains 35m/8mm wire. The winch is built on a plate with mounting brackets that can be easily attached to all cranes. The winch is strong and can handle a demanding environment.

The winch is controlled with a 2-channel radio and a double-acting valve. Press the button and it winches in, if you release the button you get an engine braked position, a press of the OUT button exposes the drum and the cable can be pulled out. The valve has both manual and electric control.

The winch below is delivered complete with hoses, adapters and valves that are connected in series with the crane’s hydraulic circuit.



Technical specificationsWe-2200
Pulling force at 175 bar2200 kp
Wire speed at 40 L / min0,29 m / sek
Wire with hook / längd8 mm / 35 m
Winch weight part / excl. / complete50 kg / 60 kg / 75 kg
Price, VAT excl.17 900
Buy
