Grapple loader

We-4300 crane with 3t rotator and grapple We-17
102130





We-4300
Max radial range 4,3 m
Working pressure 180 bar
Crane rotation 370°
Slewing cylinder 4 pcs
Turning capacity 7 kNm
Boom extension n/a
Lifting capacity in grapple 480 kg vid 4,3 m
Grapple area 0,14 m²
Rotator capacity 650 Nm
Weight 400 kg

Price, VAT excl.78 000
Buy
102220







We-5500
Max radial range 5,5 m
Working pressure 180 bar
Crane rotation 370°
Slewing cylinder 4 pcs
Turning capacity 7,8 kNm
Boom extension 1,3 m
Lifting capacity in grapple 460 kg vid 4 m
  300 kg at 5,5 m
Grapple area 0,17 m²
Rotator capacity 650 Nm
Weight 475 kg

Price, VAT excl.89 000
Buy

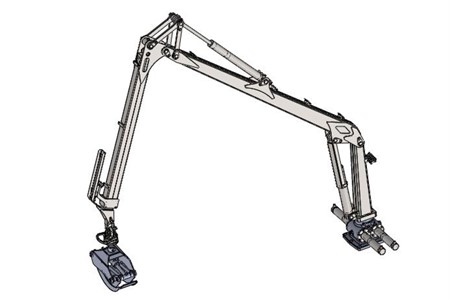

We-6700L crane with 3t rotator and grapple We-20 4G
102320





We-6700
Max radial range 6,7 m
Working pressure 190 bar
Crane rotation 380°
Slewing cylinder 4 pcs
Turning capacity 12 kNm
Boom extension 1,65 m
Lifting capacity in grapple 700 kg vid 4 m
  450 kg at 5 m
  360 at 6,7 m
Grapple area 0,14 m²
Rotator capacity 650 Nm
Weight 400 kg

Price, VAT excl.105 000
Buy
We-7000 crane with 4t / 59 rotator and grapple We-20B 4G
102361



We-7000
Max radial range 7,0 m
Working pressure 190 bar
Crane rotation 380°
Slewing cylinder 4 pcs
Turning capacity 15 kNm
Boom extension 1,65 m
Lifting capacity in grapple 900 kg vid 4 m
  650 kg at 5 m
   550 kg at 6 m
  450 kg at 7 m
Grapple area 0,20 m²
Rotator capacity 840 Nm
Weight 1230 kg

Price, VAT excl.118 000
Buy
We-8500 crane with 4t rotator and grapple We-20B 4G
102512





We-8500
Max radial range 8,5 m
Working pressure 190 bar
Crane rotation 380°
Slewing cylinder 4 pcs
Turning capacity 16 kNm
Boom extension 3,4 m
Lifting capacity in grapple 980 kg vid 4 m
  730 kg at 5 m
  620 at 6 m
  500 kg vid 7 m
  360 kg vid 8,5 m
Grapple area 0,20 m²
Rotator capacity  840 Nm
Weight 980 kg

Price, VAT excl.169 000
Buy
