Learning of Transmitter If any part of the system has been replaced, the receiver and transmitter will need to be paired together.

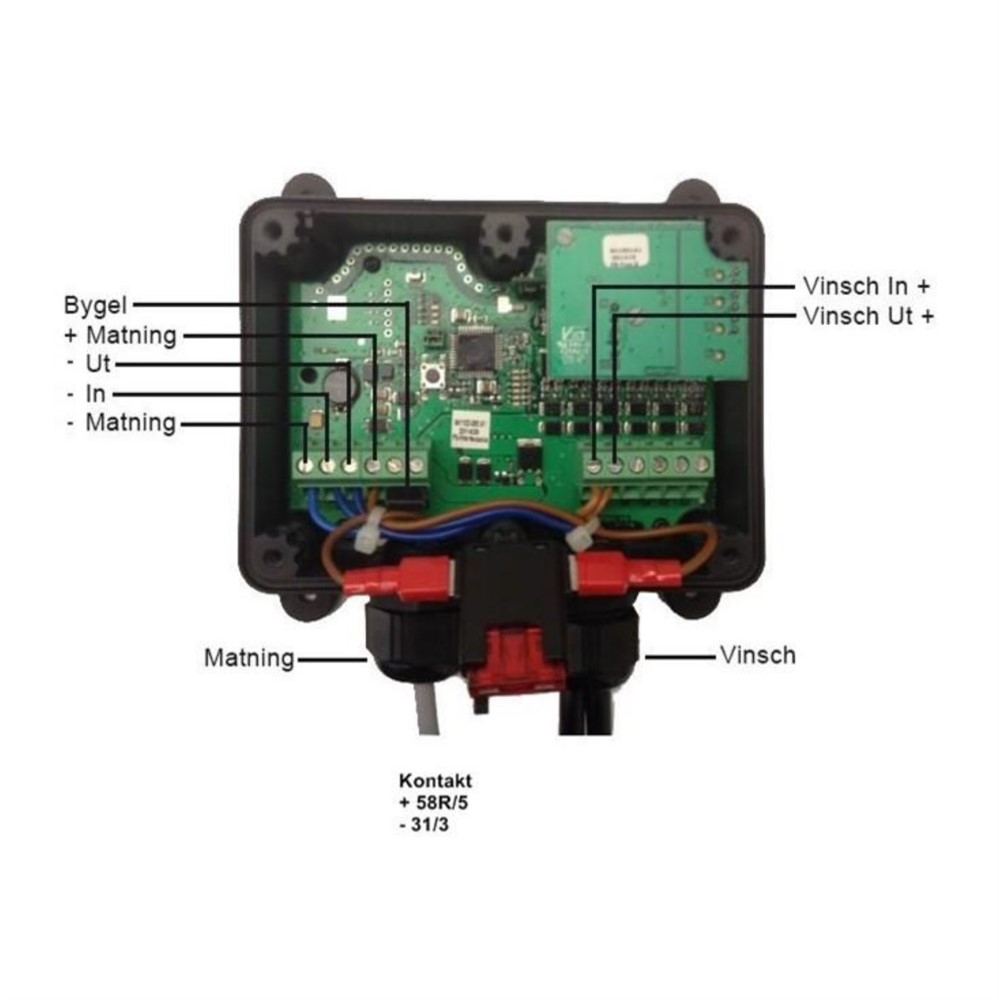

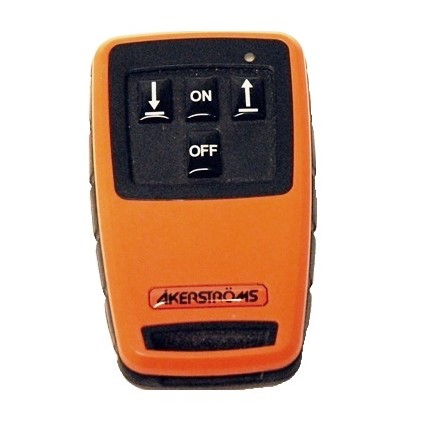

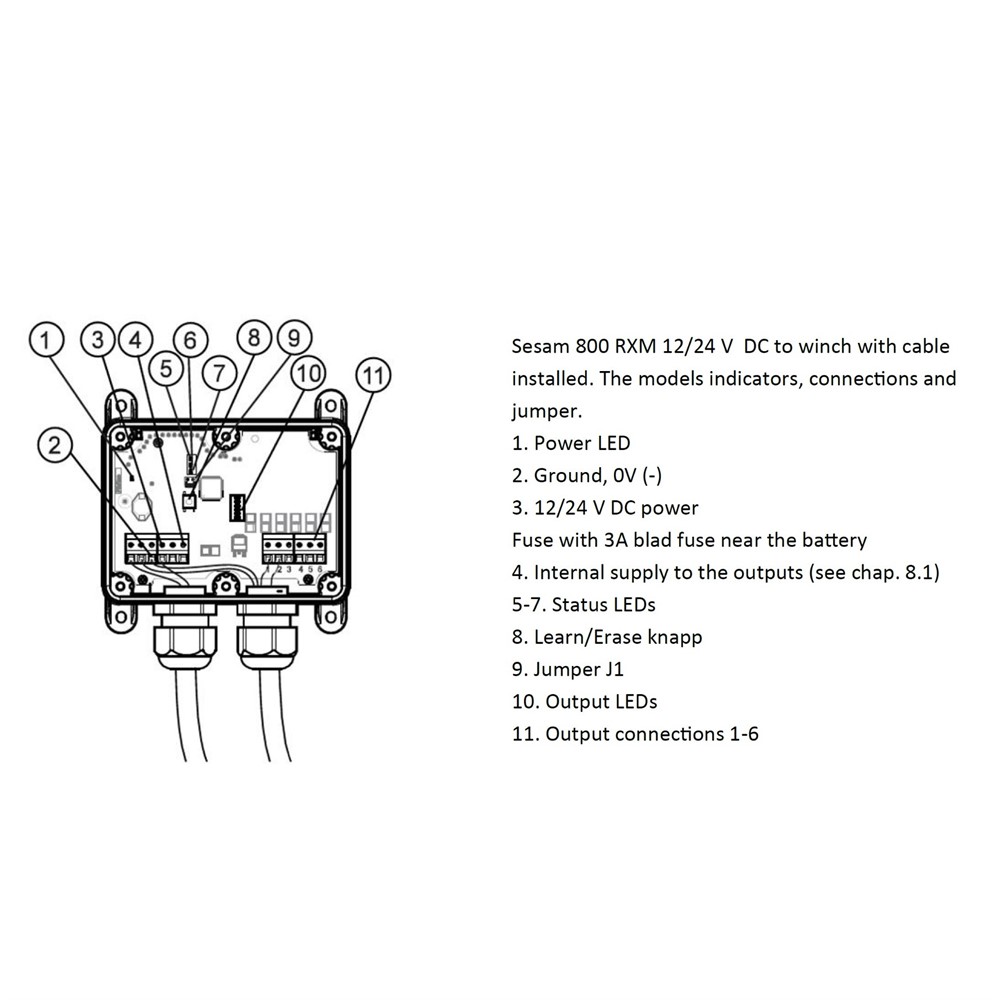

Remove the plastic caps on the back of the receiver to reach the screws and disassemble. Press the button ”ON” on the transmitter until the green indicator lights. The transmitter is now active. Press the Learn/Erase button on the receiver until LED 7 is ON. (Fig. 2) The Learn Mode will be active for 10 seconds (as long as LED 7 is ON). Press transmitter button 1 ”IN” to pair the transmitter to the receiver. LED 7 (fig. 2) blinks three times if the learning has succeeded. Install the receiver cover and tighten the six screws to 2.0 Nm Mount the caps over the screws.
